Beskrivning
- Alla flödes- och tryckregleringsventiler är konstruerade för 700 bar arbetstryck.
- Alla ventiler har 3/8"-NPT tryckportar för att förhindra läckage.
| Model | SNUBBER VALVE | Symbol | AZ5121 | |
|---|---|---|---|---|
| AZ5121 | Used for flow control and load holding when closed
Also suitable for use as a gauge snubber. |
 |
 |
 |
| Model | MANIFOLD WITH FLOW REGULATING VALVE, 2 OUTLETS | Symbol | AZ5122 | |
|---|---|---|---|---|
| AZ5122 | Used for flow control of two outlets
from one pressure source. |
 |
 |
 |
| Model | MANIFOLD WITH FLOW REGULATING VALVE, 4 OUTLETS | Symbol | AZ5124 | |
|---|---|---|---|---|
| AZ5124 | Used for flow control of four outles
from one pressure source. |
 |
 |
 |
| Model | MANUALLY OPERATED CHECK VALVE | Symbol | AZ5200 | |
|---|---|---|---|---|
| AZ5200 | When closed allows oil flow in one direction only,
holding the load. |
 |
 |
 |
| Model | SINGLE WAY FLOW REGULATING VALVE | Symbol | AZ5255 | |
|---|---|---|---|---|
| AZ5255 | Similar to AZ5200, allows free oil flow
in one direction and in the other it can be regulated or completely closed. |
 |
 |
 |
| Model | CHECK VALVE | Symbol | AZ5500 | |
|---|---|---|---|---|
| AZ5500 | Allows oil flow in one direction only. |  |
 |
 |
| Model | PRESSURE RELIEF VALVE | Symbol | AZ5600 | |
|---|---|---|---|---|
| AZ5600 | To regulate the pressure in the hydraulic circuit.
From 50 to 700 bar. Supplied with a 0.9 m return line hose kit. |
 |
 |
 |
| Model | PILOT OPERATED CHECK VALVE | Symbol | AZ5700 | |
|---|---|---|---|---|
| AZ5700 | Load holding valve used with
double-acting cylinders which is released by pilot pressure from the return line. |
 |
 |
 |

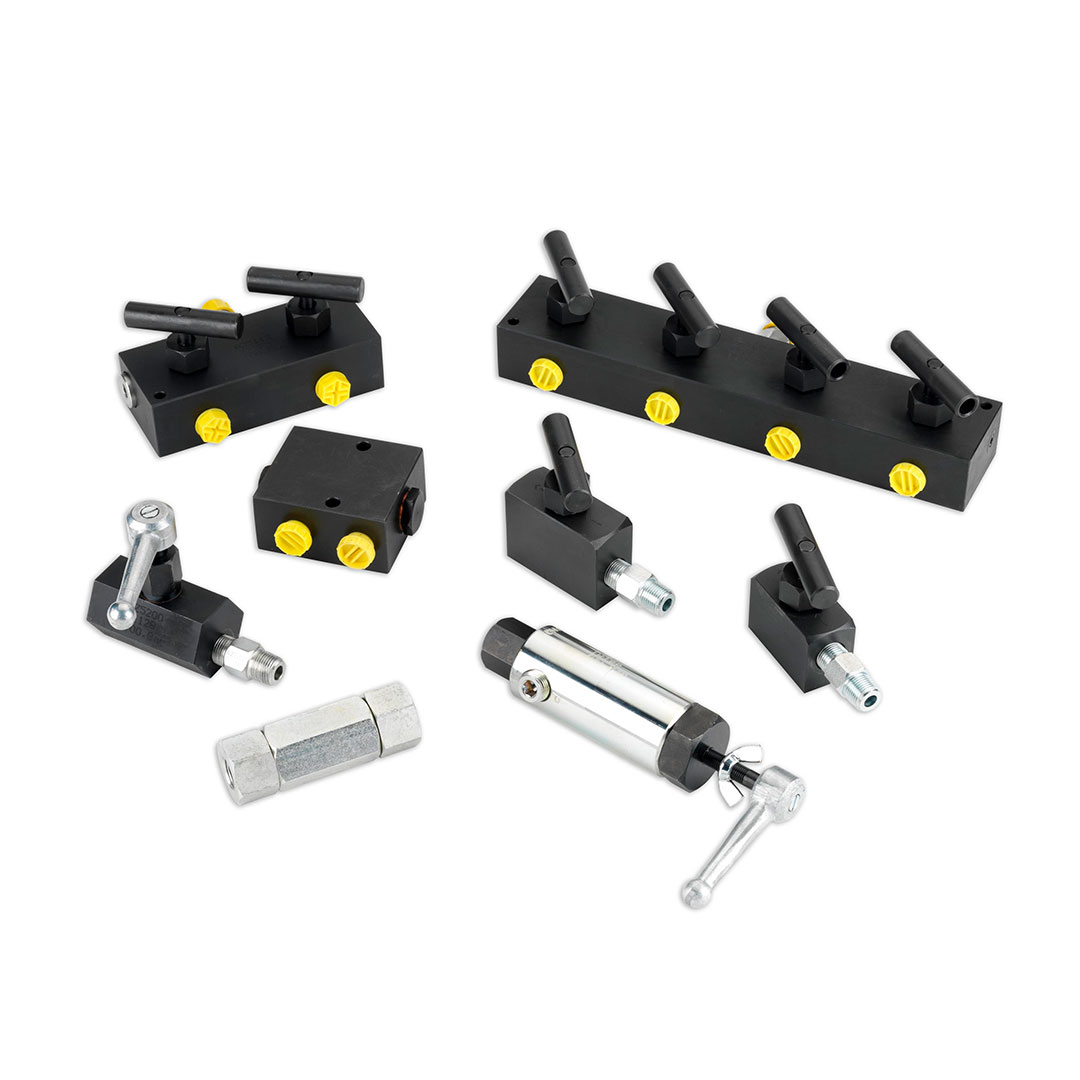

Flödesregleringsventiler
